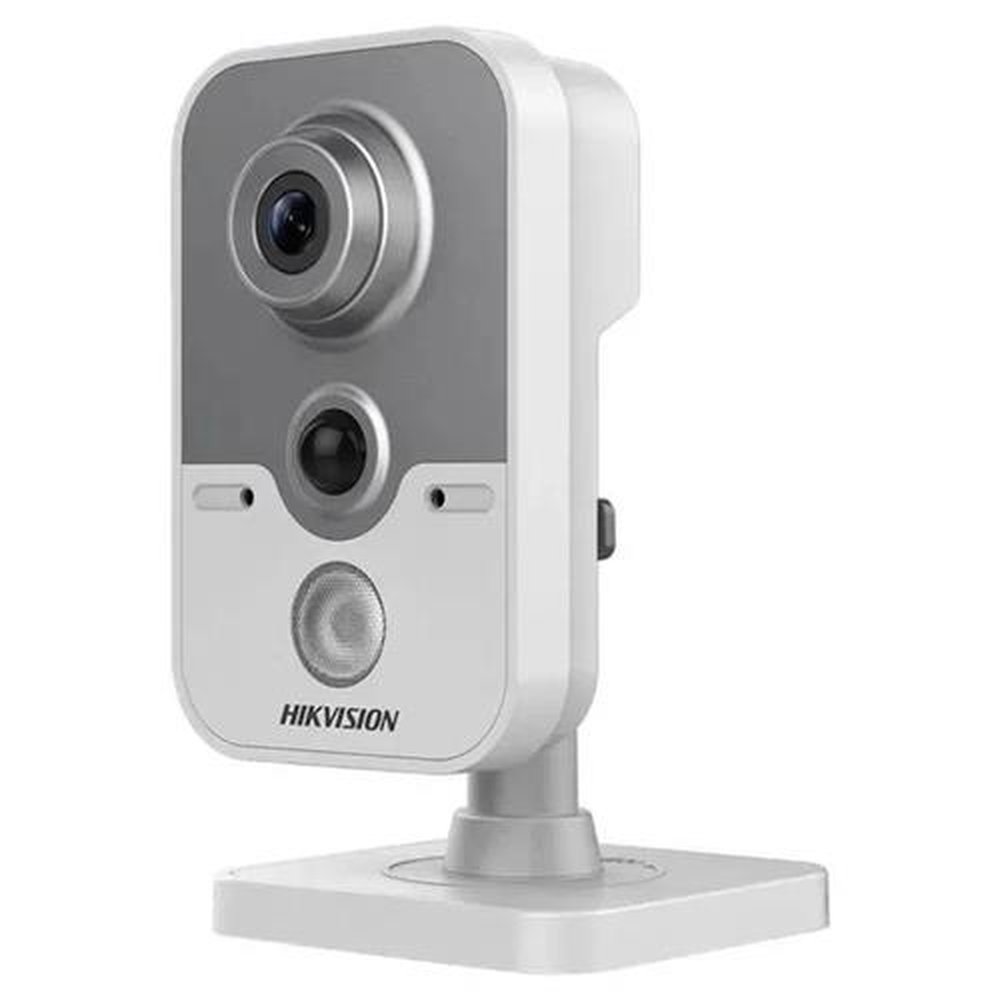

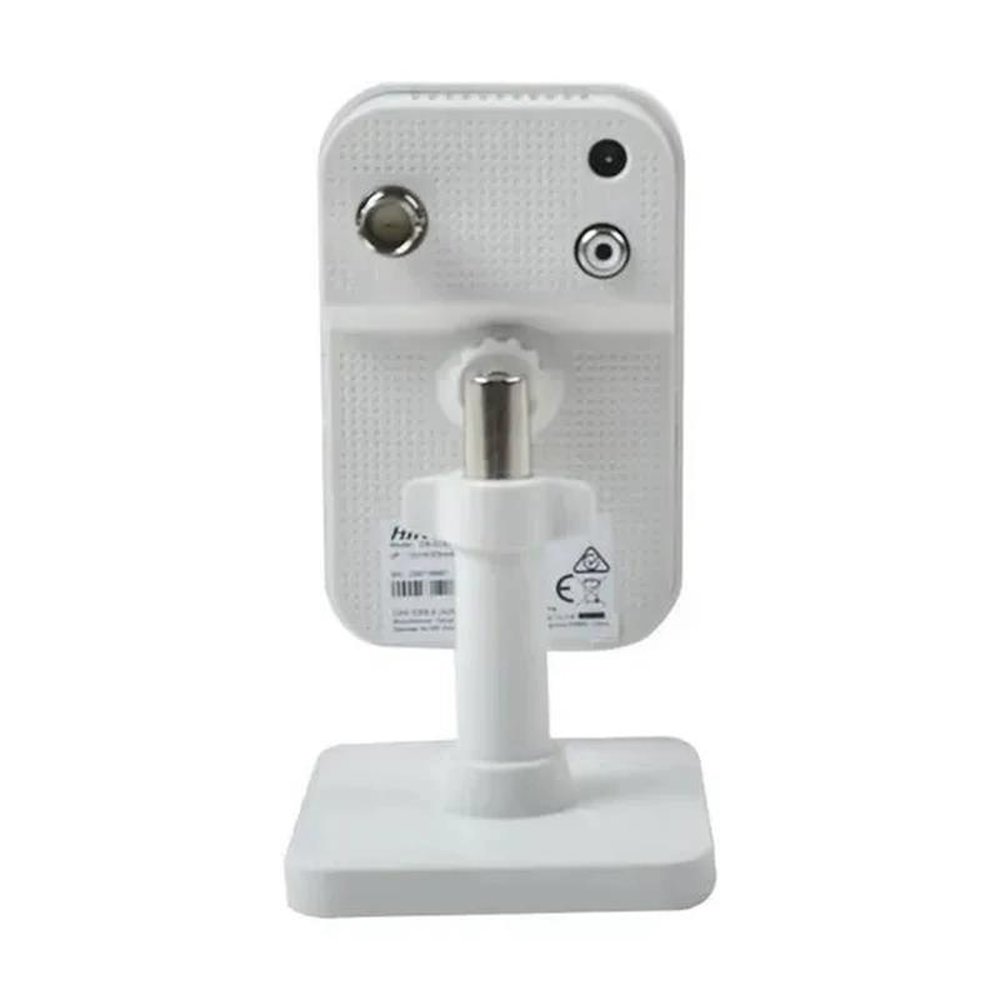

*Câmera Hikvision 2mp 2,8mm Ds-2ce38d8t-Pir
Camera
Image Sensor
2.0 megapixel progressive scan CMOS
Max. Resolution
1920 (H) × 1080 (V)
Min. Illumination
Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
Day & Night
IR cut filter
Signal System
PAL/NTSC
Slow Shutter
Max. 16 times
Lens
Lens Type
2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV
103.5° (2.8 mm), 80.3° (3.6 mm)
Lens Mount
M12
Image Settings
Brightness, Sharpness, Mirror, Smart IR
Frame Rate
PAL: 1080p@25fps,NTSC: 1080p@30fps
Day/Night Mode
Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)
> 120 dB
Image Enhancement
WDR/BLC/OFF
Privacy Mask
ON/OFF, 4 programmable privacy masks
Noise Reduction
Level 1 to 10
White Balance
ATW/MANUAL
AGC
Yes
Supplement Detection(PIR)
PIR Range
Angle: 110°, Range: 11 m
Interface
Video Output
1 HD analog output
Audio
Audio In: Built-in microphone; Audio Out: 1 RCA Event
Motion Detection
4 programmable motion areas
General
Material
Plastic
Dimension
104 mm × 66 mm × 41.07 mm (4.1" × 2.6" × 1.62")
Approx. 210 g (0.46 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication
Up the coax, Protocol: HIKVISION-C (TVI output)
Language
English, Chinese
Power Supply
12 VDC ±25%
Consumption
Max. 5 W
IR Range
Up to 20 m *Todas as informações divulgadas são de responsabilidade do fabricante
*Imagens meramente ilustrativas
