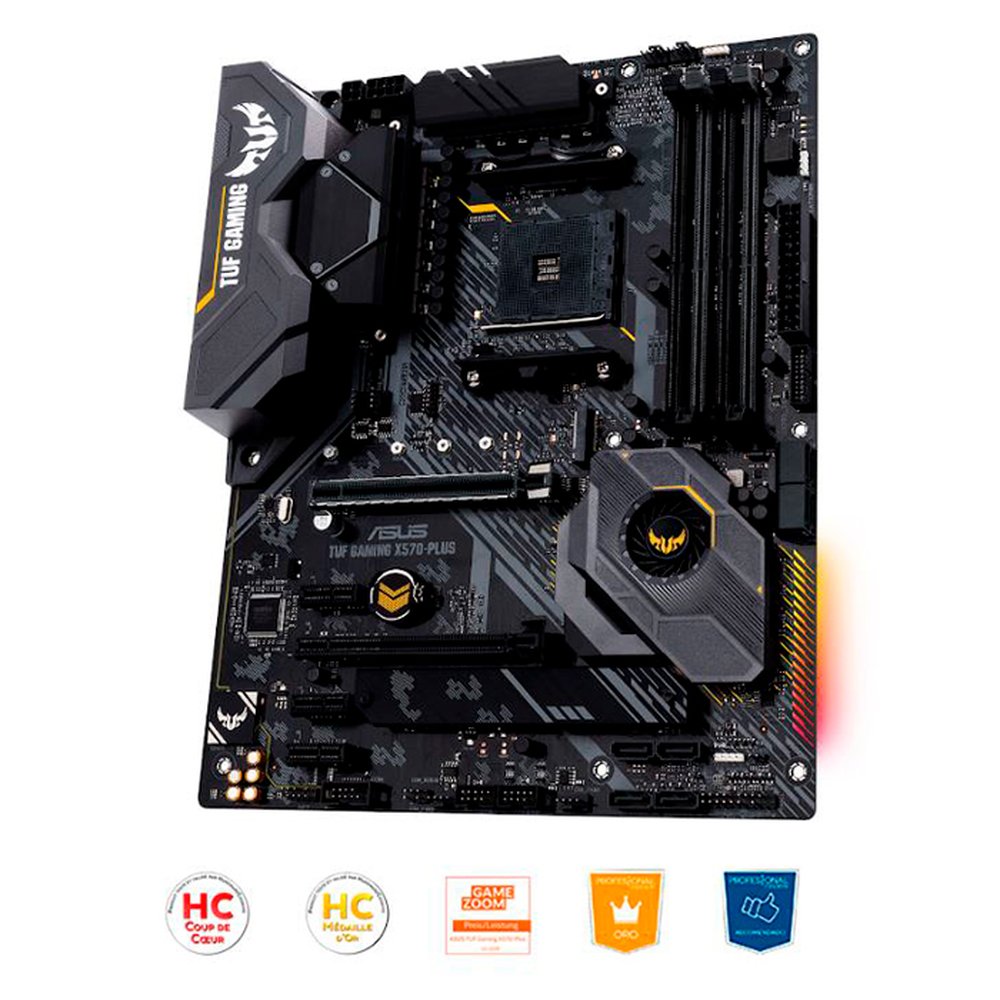

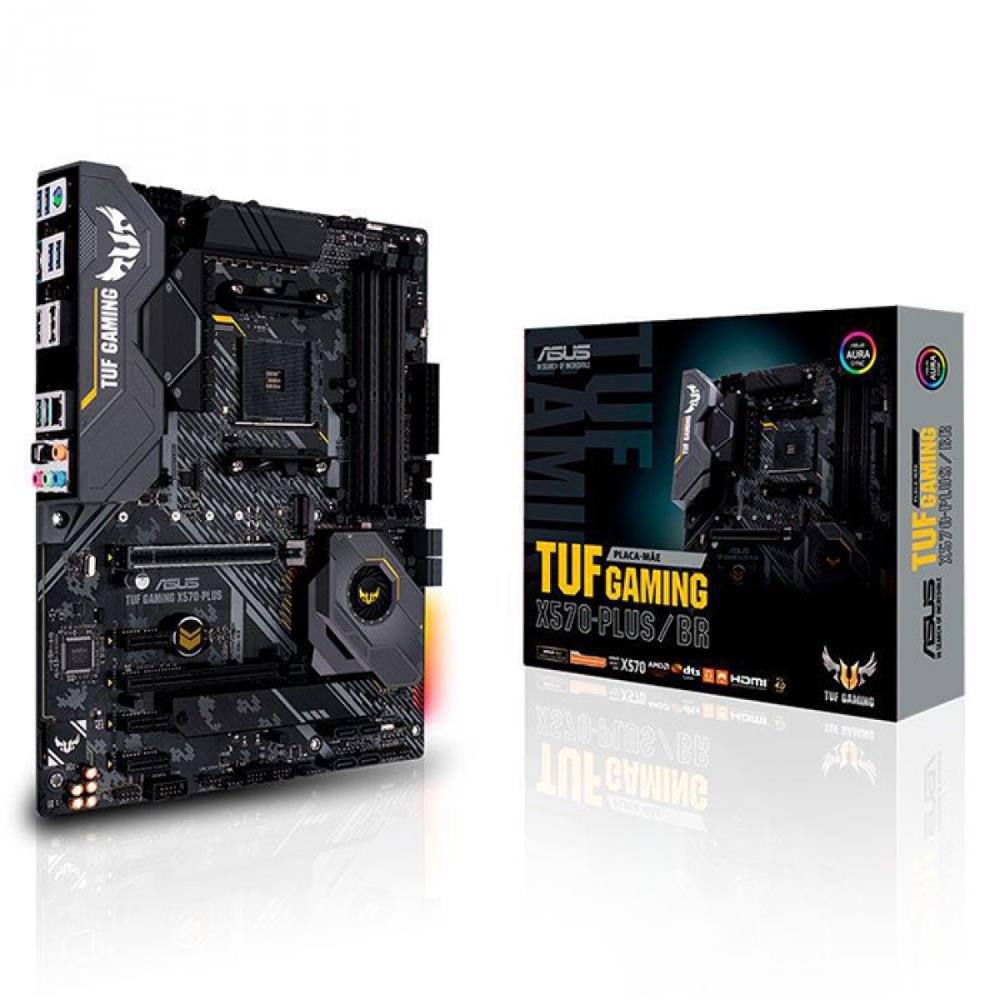

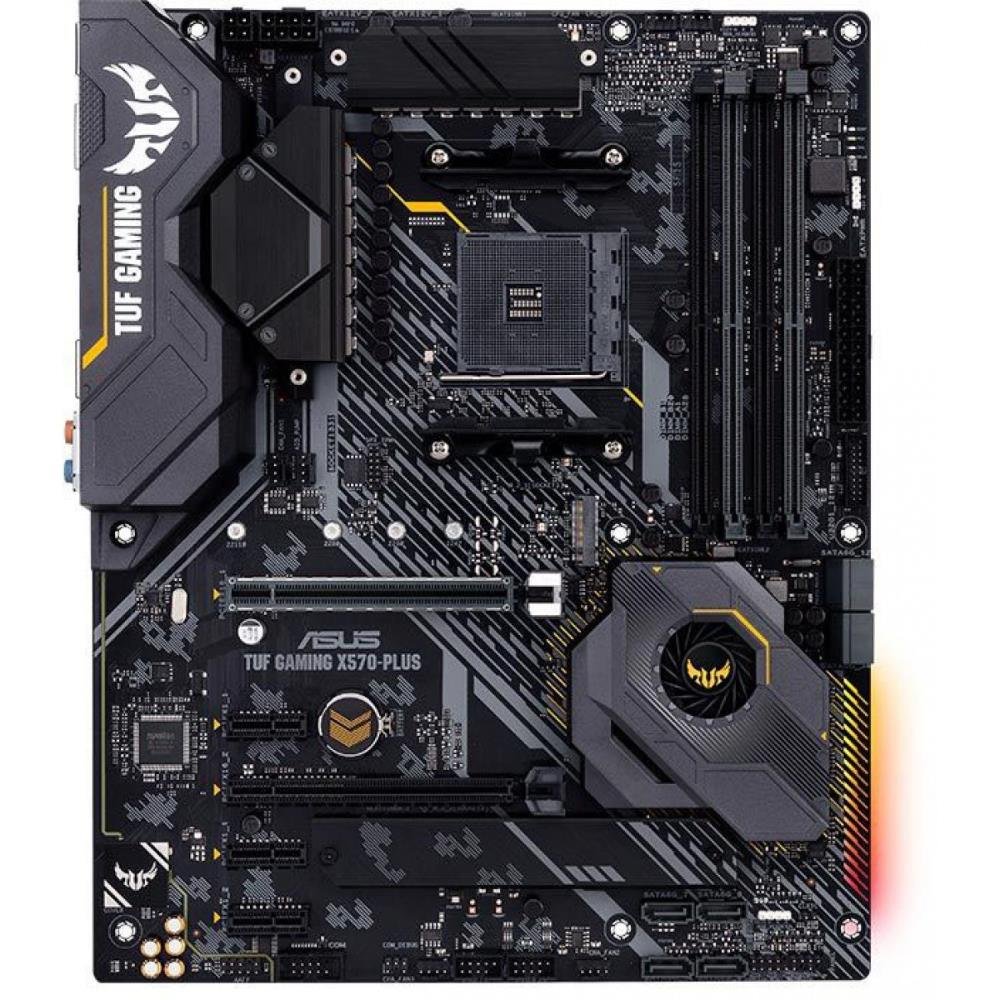

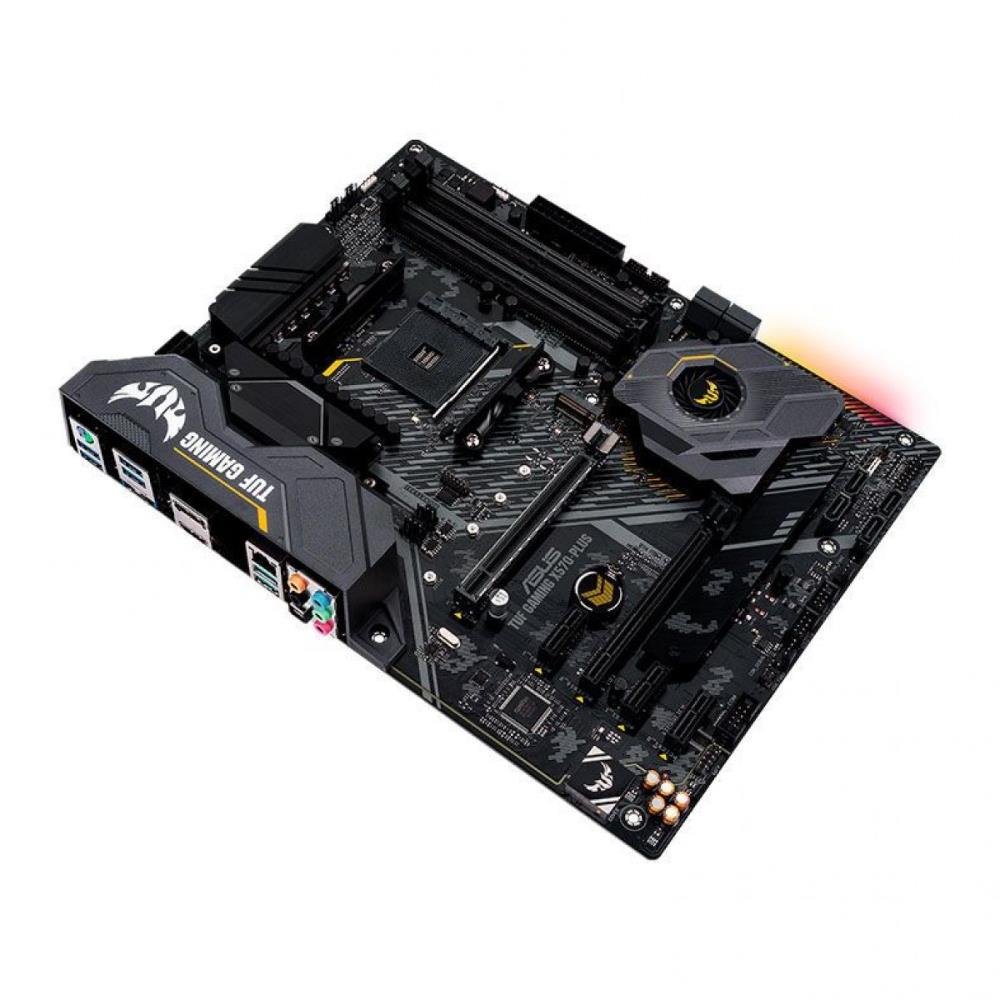

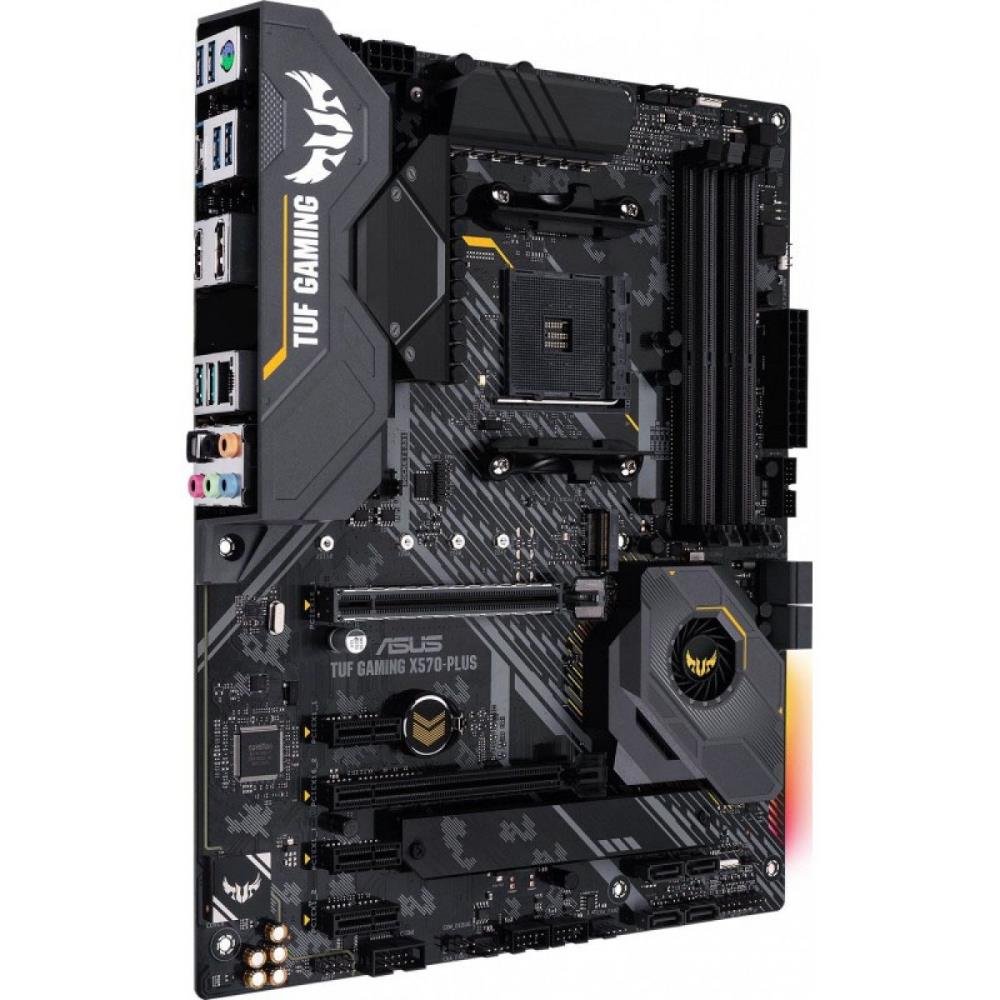

Placa Mãe ASUS TUF Gaming X570-Plus, Chipset X570, AMD AM4, ATX, DDR4, 90MB13T0-C1BAY0
PLACA MÃE ASUS TUF GAMING X570-PLUS, CHIPSET X570, AMD AM4, ATX, DDR4
A TUF Gaming X570-Plus reúne os elementos essenciais da mais recente plataforma AMD e os combina com funcionalidades prontas para o jogo e durabilidade comprovada. DESEMPENHO SÓLIDO
Com fornecimento de energia atualizado e opções abrangentes de refrigeração para alimentar as CPUs mais recentes da AMD, além de suporte para memória e armazenamento mais rápidos, o TUF Gaming X570-Plus é a base perfeita para sua próxima plataforma de batalha. DESIGN DE ENERGIA
O VRM da CPU da TUF Gaming X570-Plus utiliza 12+2 estágios de energia Dr. MOS que combinam MOSFETs e drivers high-side e low-side em um único pacote, oferecendo a energia e a eficiência que os mais recentes processadores da AMD exigem. PC DIY FÁCIL
As placas-mãe TUF Gaming foram projetadas para ser fáceis de configurar do jeito que você desejar, mesmo para os montadores iniciantes. A partir do ecossistema TUF Gaming Alliance, que torna fácil a compatibilidade e a escolha de peças em um portal de software completo para todas as suas configurações Marca:
Asus Modelo:
90MB13T0-C1BAY0 Processador:
AMD AM4 Socket 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/AMD Ryzen 2nd Generation/3rd Gen AMD Ryzen Processors
Clique aqui para ver a lista de processadores suportados Chipset:
Processadores AMD X570 Memória:
3rd Gen AMD Ryzen Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
2nd Gen AMD Ryzen Processors
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Slots de Expansão:
3rd Gen AMD Ryzen Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
3 x PCIe 4.0 x1 Armazenamento:
3rd Gen AMD Ryzen Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10 Audio:
Realtek ALC S1200A 8-Channel High Definition Audio CODEC
Audio Feature :
Exclusive DTS Custom for GAMING Headsets.
Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. LAN (rede): Realtek L8200A
ASUS Turbo LAN Utility
TUF LANGuard Conectores internos:
2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports Portas traseiras:
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
5 x Audio jack(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C) Dimensões:
Modelo ATX - 30.5 cm por 24.4 cm
