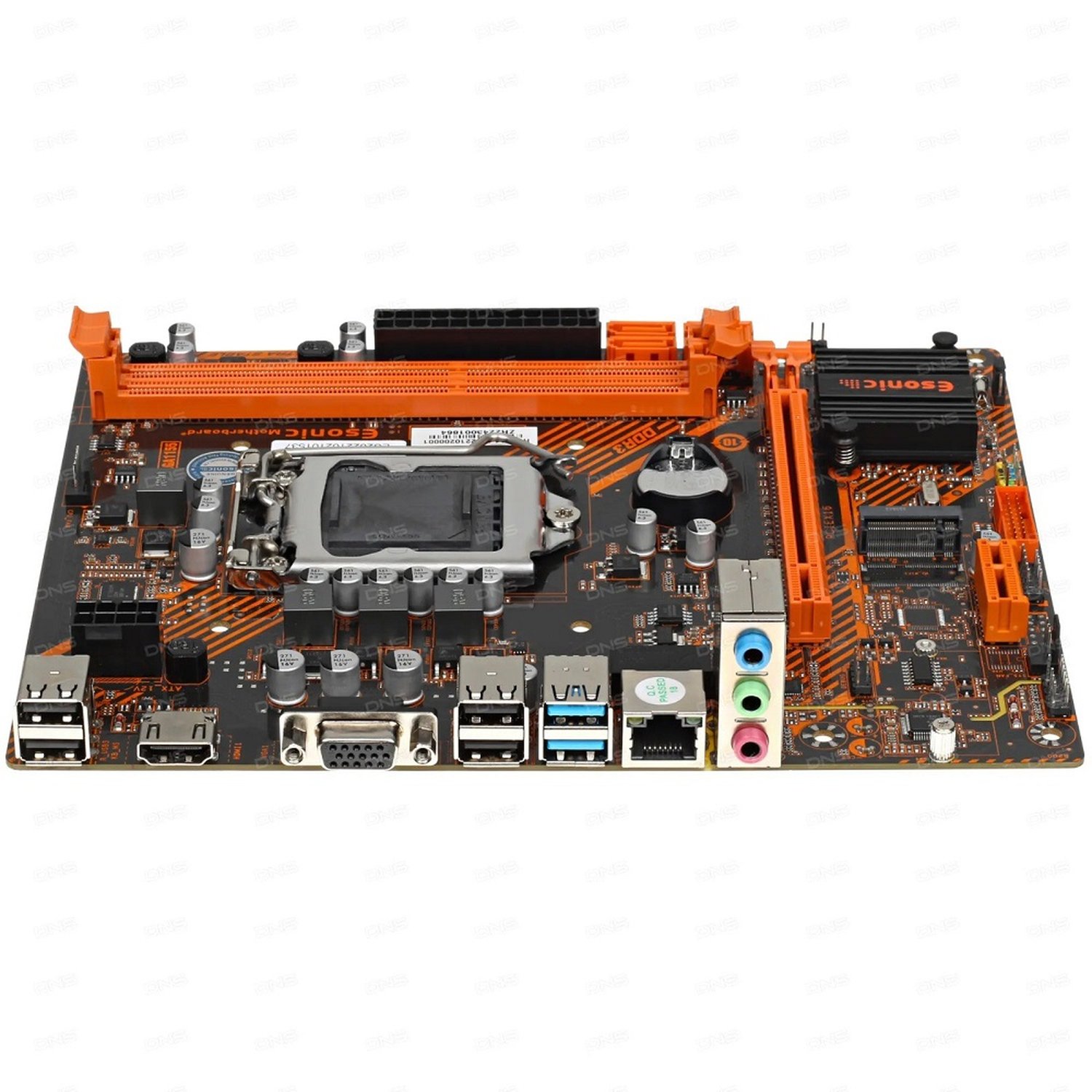

Placa Mãe Esonic H61DA1 DDR-3 2nd/3rd Gen NVME Support M-ATX Motherboard

Model: Esonic H61DA1

Intel Socket LGA1155 for 2nd/3rd Gen Core i7/ i5/i3 Processors

Memory Support DDR-3 1333/1600MHz

Storage- 4X SATA3.0 6Gb/s

M.2 Nvne PCIE-X16, PCIE-X1, SATA 3.0, USB 3.0 Esonic H61DA1 DDR-3 2nd/3rd Gen NVME Support M-ATX Motherboard

Brand Esonic Model H61DA1 Processor Support Intel® Socket 1155 for 2nd/3rd Generation Core¿i7/ Core¿ i5/Core¿ i3/Pentium®/Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 Chipset Intel® H61 Memory support 2 * DDR3 1066/1333/1600MHz DIMM Graphic Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HD / VGA ports Slots 1 x PCIe x16 slot

1 x PCIe x1 slot Storage 1 x M.2 Nvne Socket, Supports 2242 SSD

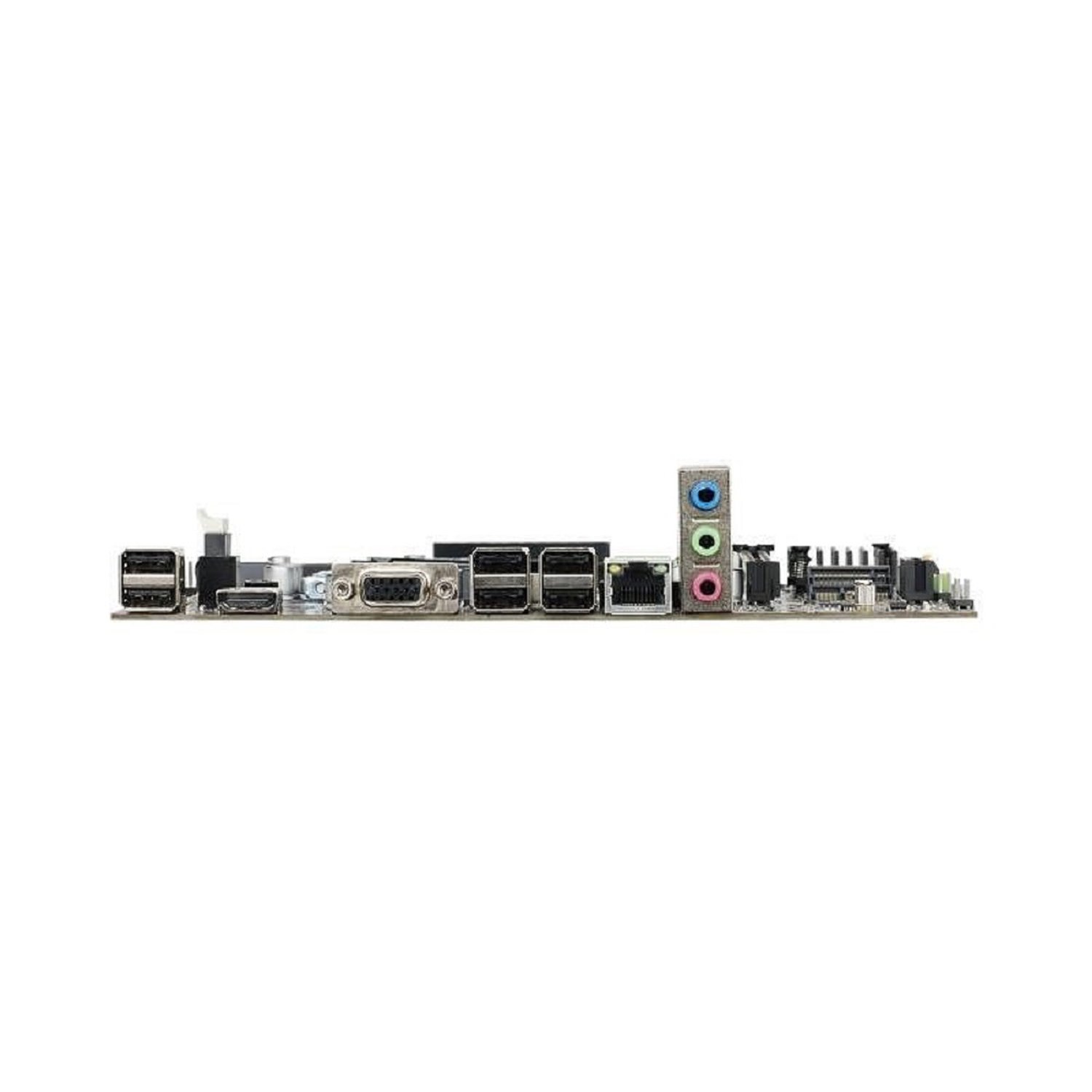

4 x SATA 3Gb/s Ports LAN Realtek Chip, 1 x 100M¿Optional 1000M¿ Audio Realtek Chip, ALC 6-channel audio USB 10 * USB 2.0 port (6 at back panel, black, 4 at mid-board) Back Panel I/O 1 x VGA Port

1 x HDMI Port

1 x LAN (RJ45) Port

6 x USB 2.0 Ports

3 x flexible audio jacks Internal I/O 1 x USB 19pin connector¿ supports 2*USB 2.0 ports

1 x USB 2.0 connector¿ supports 2*USB 2.0 ports

4 x SATA 3Gb/s Ports

1 x 4 -pin CPU_FAN/SYS_FAN connectors

1 x 24-pin ATX power connector

1 x 4-pin 12V ATX Power connectors

1 x F_Audio connector

1 x Internal Speaker connector

1 x F_Panel connector

1 x DEBUG connector Dimension 213 x 170mm Color Black Warranty 01 year warranty Description

Esonic H61DA1 DDR-3 2nd/3rd Gen NVME Support M-ATX Motherboard

Esonic H61DA1 DDR-3 2nd/3rd Gen NVME Support M-ATX Motherboard. detailed and specific information on every model of motherboard, including lesser-known models or brands like Esonic¿s H61DA1 DDR-3 M-ATX motherboard, may not be present in my database. However, I can offer some general insights and guidance: Chipset: The motherboard you¿re referring to is based on Intel¿s H61 chipset, which originally supports Intel¿s 2nd (Sandy Bridge) and 3rd (Ivy Bridge) generation processors.

NVMe Support: Generally, older chipsets like H61 did not come with native support for NVMe drives. This means that even if you were to use an adapter to physically fit an NVMe SSD into a PCI slot, the motherboard¿s BIOS/UEFI might not recognize it as a bootable device. Some users have reported success with modded BIOS versions, but these are unofficial and carry their own risks.

Form Factor: M-ATX (or Micro ATX) is a form factor that is smaller than standard ATX but larger than Mini-ITX. It often has fewer expansion slots and less room for additional components compared to a full-size ATX board.

DDR3 RAM: This board supports DDR3 RAM, which is consistent with the memory standard used with 2nd and 3rd gen Intel CPUs.

If you¿re considering purchasing or using this motherboard and have specific needs (e.g., NVMe support), it would be best to: Check the official documentation or product page.

Consult the manufacturer directly or look for user feedback on forums.

Keep in mind that even if NVMe drives are not supported as boot drives, they can still be used for storage if recognized by the operating system after booting from another drive.

Before making any hardware modifications, always ensure compatibility to prevent damage or unintended behavior. If you¿re planning to use a modded BIOS, be cautious, as an incorrect or corrupt BIOS update can render your motherboard non-functional. Esonic H61DA1 DDR-3 2nd/3rd Gen NVME Support M-ATX Motherboard 01 year warranty
