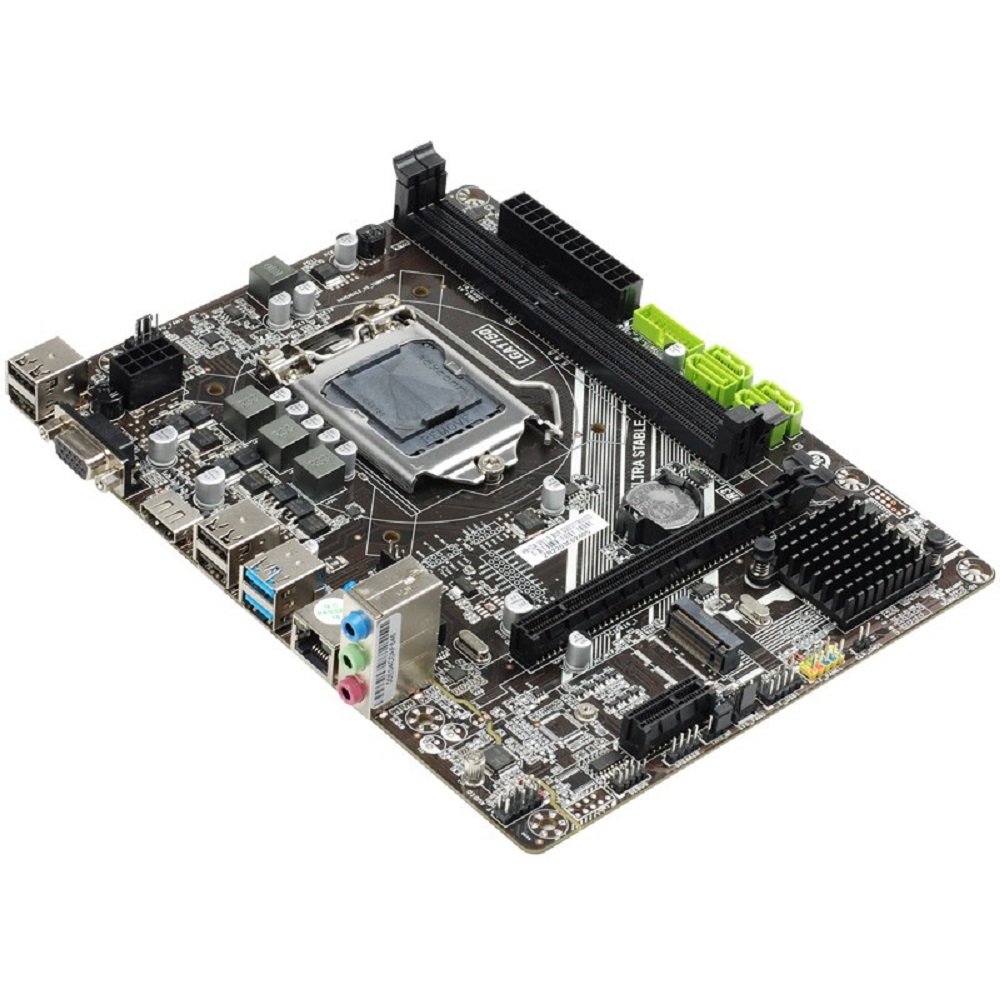

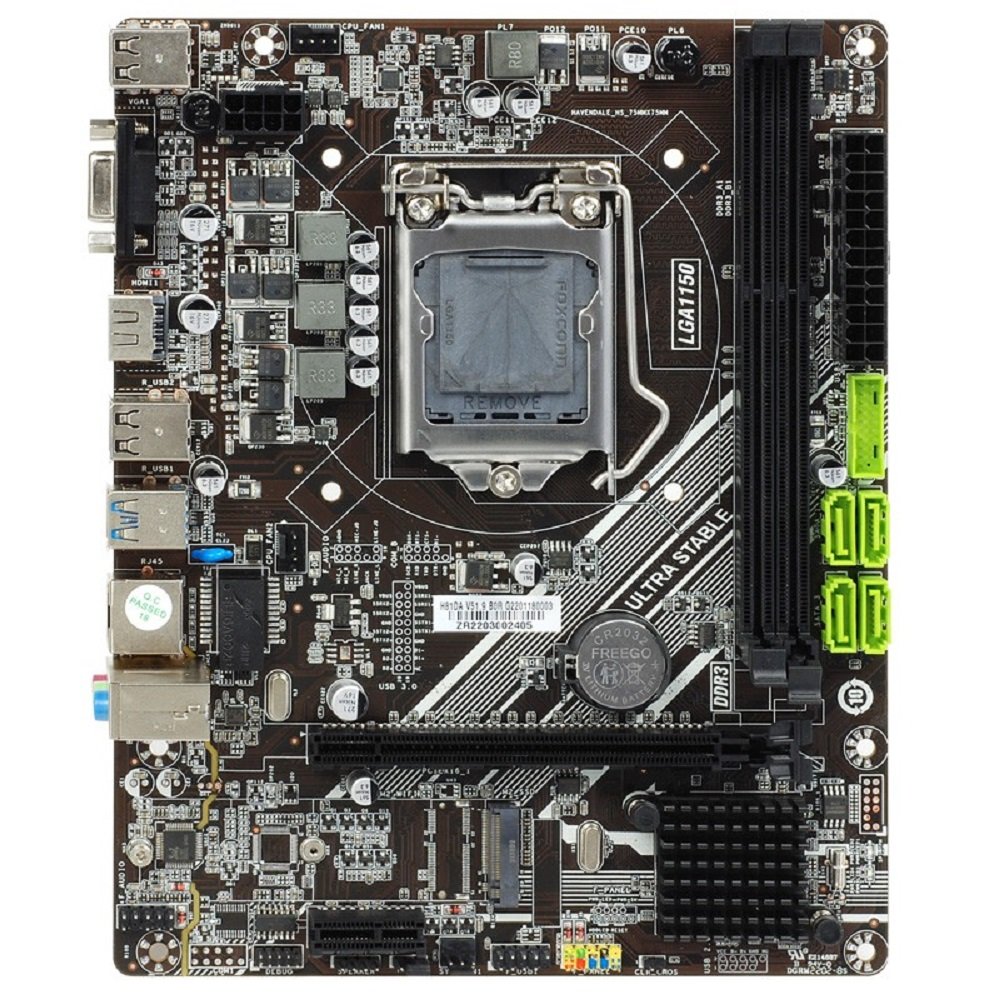

Placa mãe Esonic H81DA1 DDR-3 Intel 4th Gen NVME Support M-ATX Motherboard

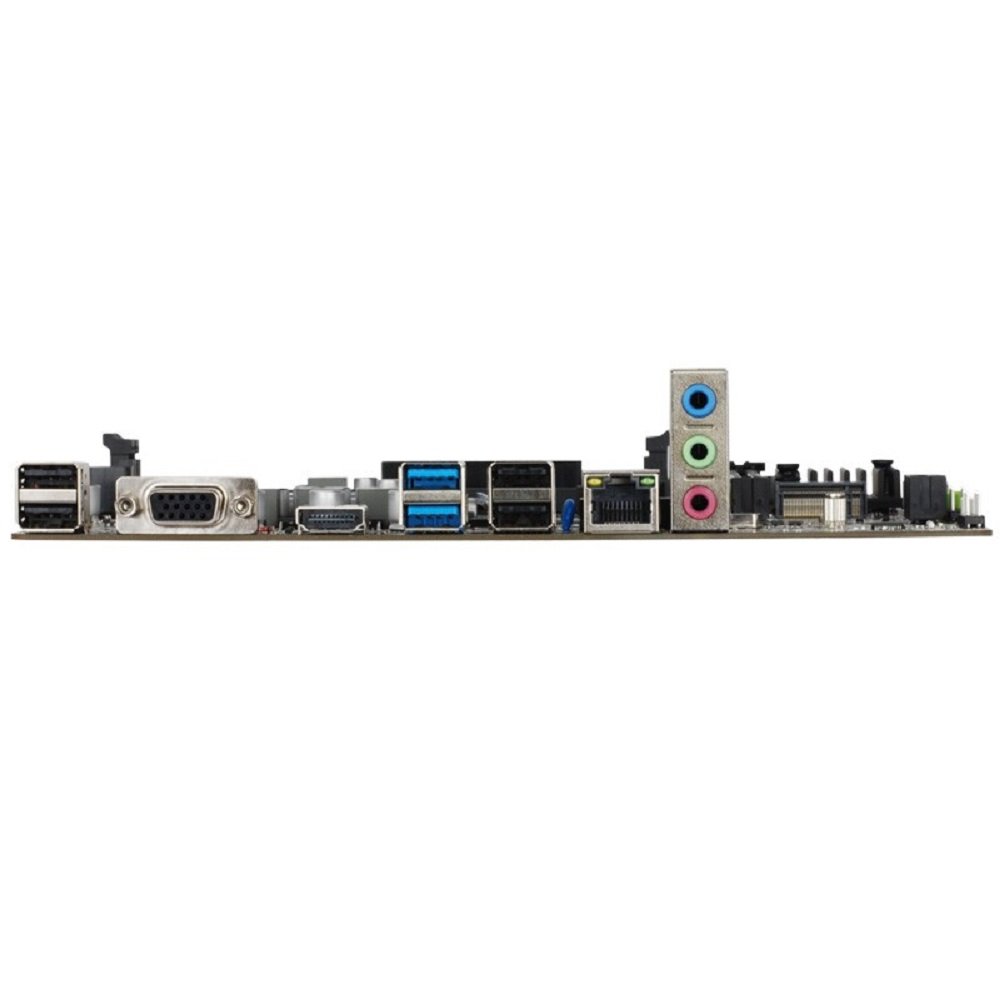

Model: Esonic H81DA1Intel Socket LGA1150 for 4th Gen Core i7/ i5/i3 ProcessorsMemory Support DDR-3 1333/1600MHzStorage- 4X SATA3.0 6Gb/sM.2, PCIE-X16, PCIE-X1, SATA 3.0, USB 3.0 Esonic H81DA1 DDR-3 Intel 4th Gen NVME Support MotherboardBrandEsonicModelH81DA1ProcessorSupport Intel® Socket 1150 for 4th Generation Core¿i7/ Core¿ i5/Core¿ i3/Pentium®/Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0ChipsetIntel® H81Memory support2 * DDR3 1066/1333MHz DIMMGraphicIntegrated Graphics Processor- Intel® HD Graphics supportMulti-VGA output support : HDMI / VGA portsSlots1 x PCIe x16 3.0/2.0 slot1 x PCIe x1 2.0 slotStorage1 x M.2 Nvne Socket, Supports 2242 SSD4 x SATA 6Gb/s PortsLANRealtek Chip, 1 x 100M¿Optional 1000M¿AudioRealtek Chip, ALC 6-channel audioUSB4 * USB 3.0 port (2 at back panel, blue, 2 at mid-board)6 * USB 2.0 port (4 at back panel, black, 2 at mid-board)Back Panel I/O1 x VGA Port1 x HD Port1 x LAN (RJ45) Port2 x USB 3.0 Ports(Blue)4 x USB 2.0 Ports3 x flexible audio jacksInternal I/O1 x USB 3.0 connector¿19pin)¿ supports 2*USB 3.0 ports1 x USB 2.0 connector¿ supports 2*USB 2.0 ports4 x SATA 6Gb/s Ports1 x 4 -pin CPU_FAN/SYS_FAN connectors1 x 24-pin ATX power connector1 x 4-pin 12V ATX Power connectors1 x DEBUG connector1 x F_Audio connector1 x Internal Speaker connector1 x F_Panel connectorDimension215 x 170mmColorBlackWarranty01 year warrantyDescriptionEsonic H81DA1 DDR-3 Intel 4th Gen NVME Support Motherboardthe ¿Esonic H81DA1 DDR-3 Intel 4th Gen NVME Support M-ATX Motherboard¿. Esonic isn¿t one of the major motherboard brands like ASUS, MSI, Gigabyte, or ASRock that tend to get extensive coverage, so some of their specific models might not be covered extensively in my dataset.However, I can provide general information based on the name and typical motherboard features:1 - H81 Chipset: This means it¿s based on Intel¿s H81 chipset, which was used for Intel¿s 4th Gen Core processors, known as Haswell.2 - DDR-3: This motherboard supports DDR3 RAM, which was the prevalent memory standard for desktop computers during the Haswell era.3 - NVME Support: NVMe is a protocol used by solid-state drives (SSDs) for faster data transfer. If this motherboard is advertised to support NVMe, it likely has an M.2 slot where you can plug in an NVMe SSD. This is slightly unusual for H81 motherboards, as NVMe support was not a common feature for this chipset, so that¿s a plus if accurate.4 - M-ATX: This denotes the form factor of the motherboard. M-ATX, or Micro ATX, is smaller than standard ATX but larger than mini-ITX. M-ATX motherboards typically have fewer expansion slots than full ATX but should still offer a good balance of features for most users. Esonic H81DA1 DDR-3 Intel 4th Gen NVME Support M-ATX Motherboard 01-year warranty. Garantia: 3 meses.
