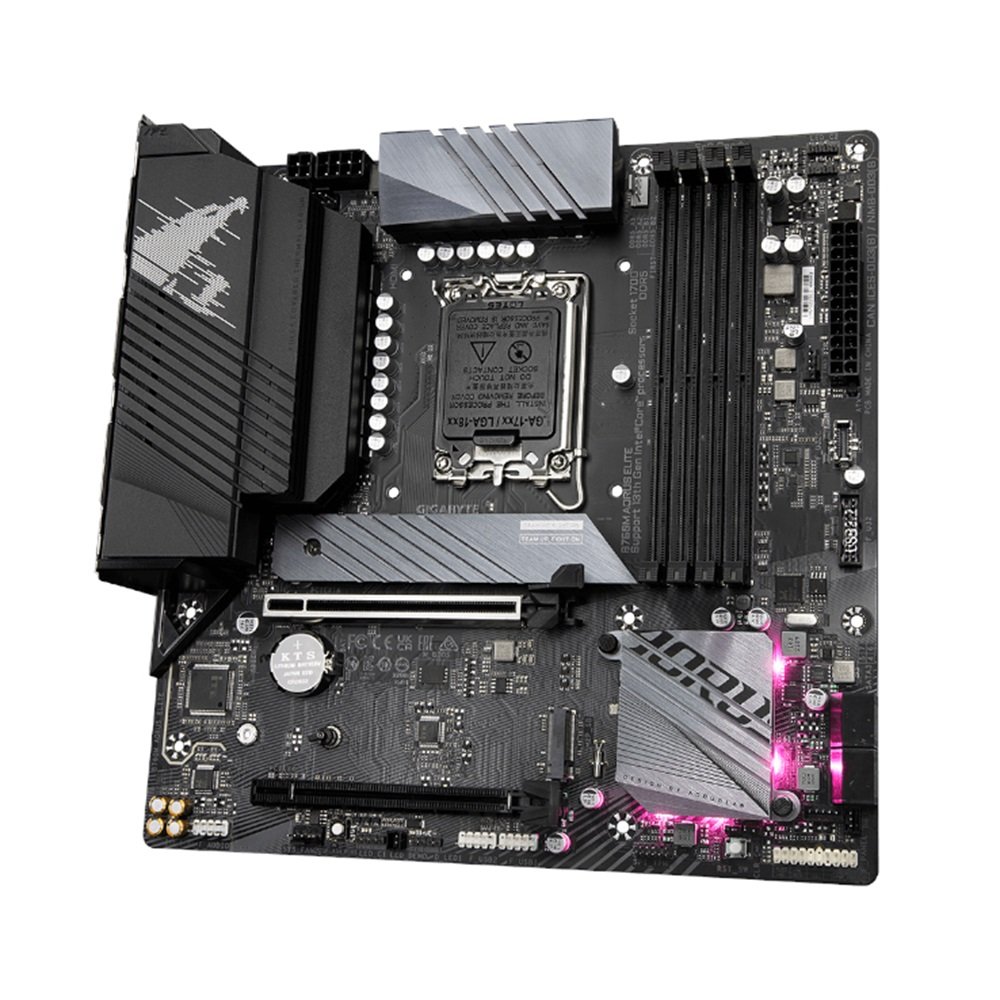

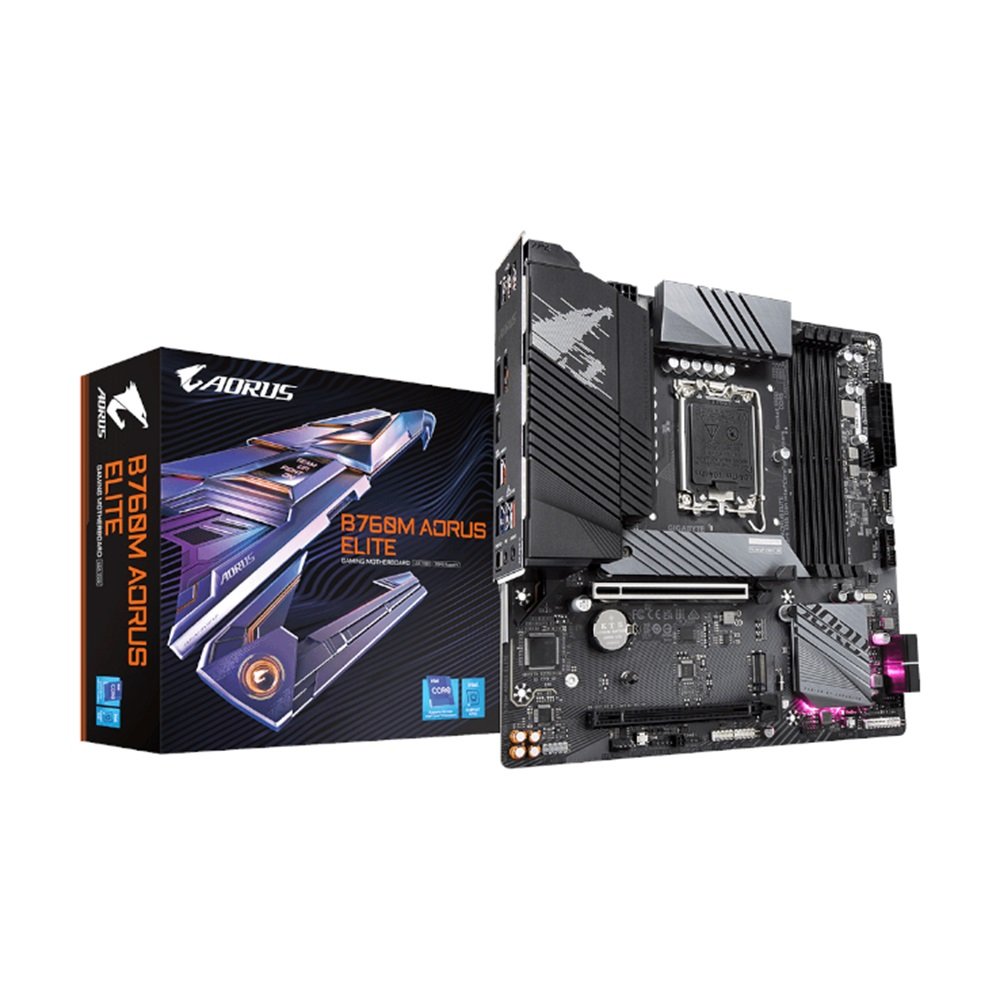

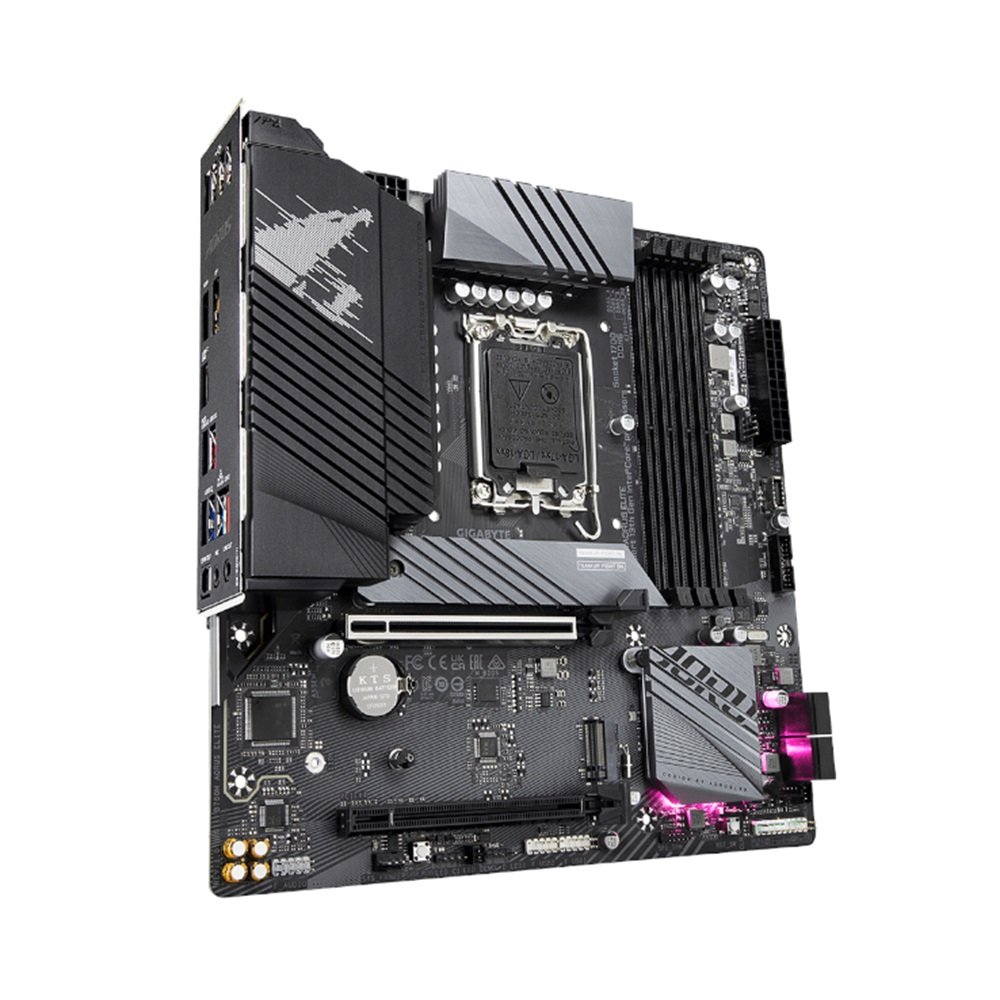

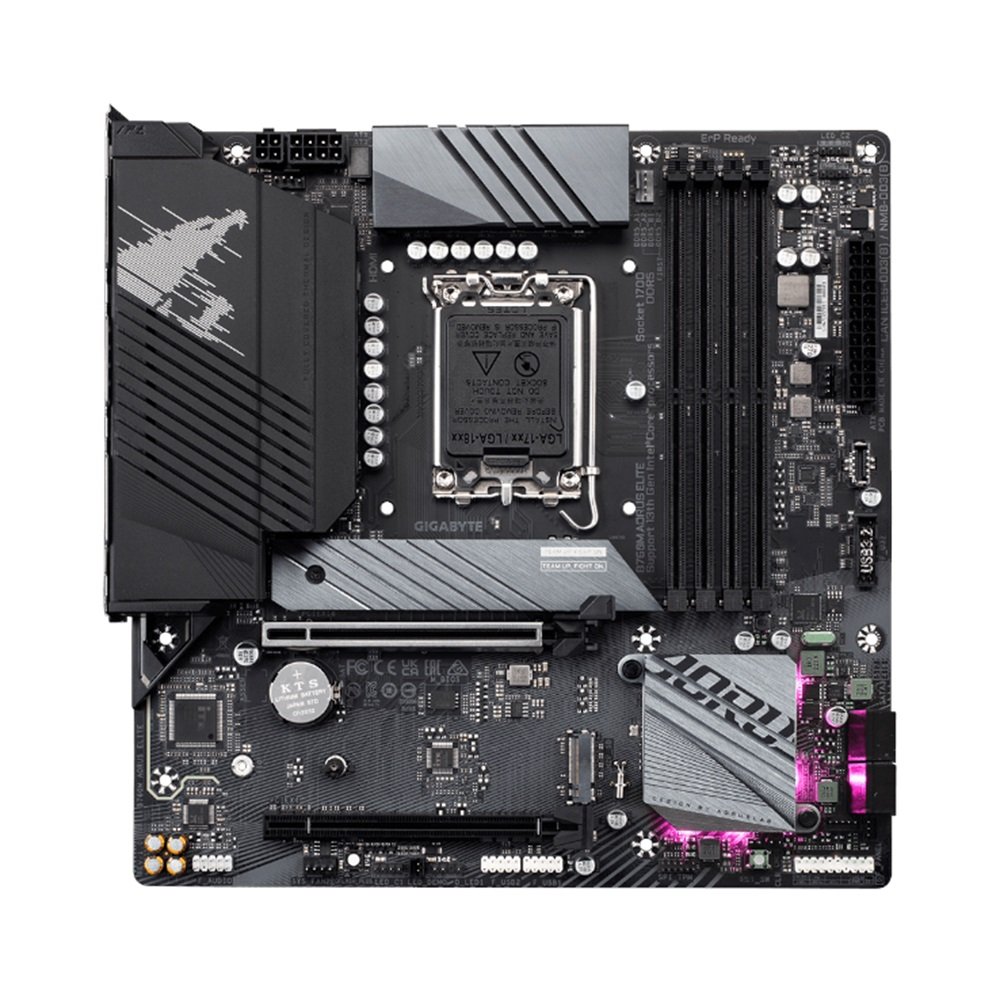

Placa Mãe Gigabyte B760M Aorus Elite DDR5, Lga 1700
DESCRIÇÃO:
Com as rapidas mudanças tecnologicas, a GIGABYTE sempre segue as ultimas tendências e fornece aos clientes recursos avançados e tecnologias mais recentes. As placas-mãe GIGABYTE são equipadas com solução de energia atualizada, os mais recentes padrões de armazenamento e excelente conectividade para permitir desempenho otimizado para jogos.
PERSONALIZAÇÃO
As placas-mãe GIGABYTE agrupam varios softwares uteis e intuitivos para ajudar os usuarios a controlar todos os aspectos da placa-mãe e fornecer efeitos de iluminação personalizaveis com estetica excepcional para se adequar a sua personalidade unica.
CONECTIVIDADE
As placas-mãe GIGABYTE permitem a melhor experiência de conexão com velocidades incriveis de transferência de dados atraves da proxima geração de rede, armazenamento e conectividade Wi-Fi.
DESIGN TÉRMICO EXCEPCIONAL
O desempenho inigualavel das placas-mãe GIGABYTE e garantido por um design termico inovador e otimizado para garantir a melhor estabilidade de CPU, Chipset, SSD e baixas temperaturas sob carga total de aplicativos e desempenho de jogos.
Caracteristicas:
Marca: GIGABYTE
Modelo: B760M AORUS ELITE
Especificações tecnicas:
CPU:
LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors*
L3 cache varies with CPU
Chipset:
Intel B760 Express Chipset
Memoria:
Suporte ao DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graficos:
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port., supporting a maximum resolution of 4096x2160@60 Hz
* Suporte for HDMI 2.0 versão e HDCP 2.3.
1 x DisplayPort, supporting a maxima resolution of 4096x2304@60 Hz
* Suporte ao DisplayPort 1.2 versão e HDCP 2.3
Áudio:
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN:
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansão Slots:
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Support for AMD CrossFireX technology
Storage Interface:
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB:
Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
1 x USB 3.2 Gen 1 port on the back panel
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors:
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Form Factor:
Micro ATX Form Factor; 24.4cm x 24.4cm
