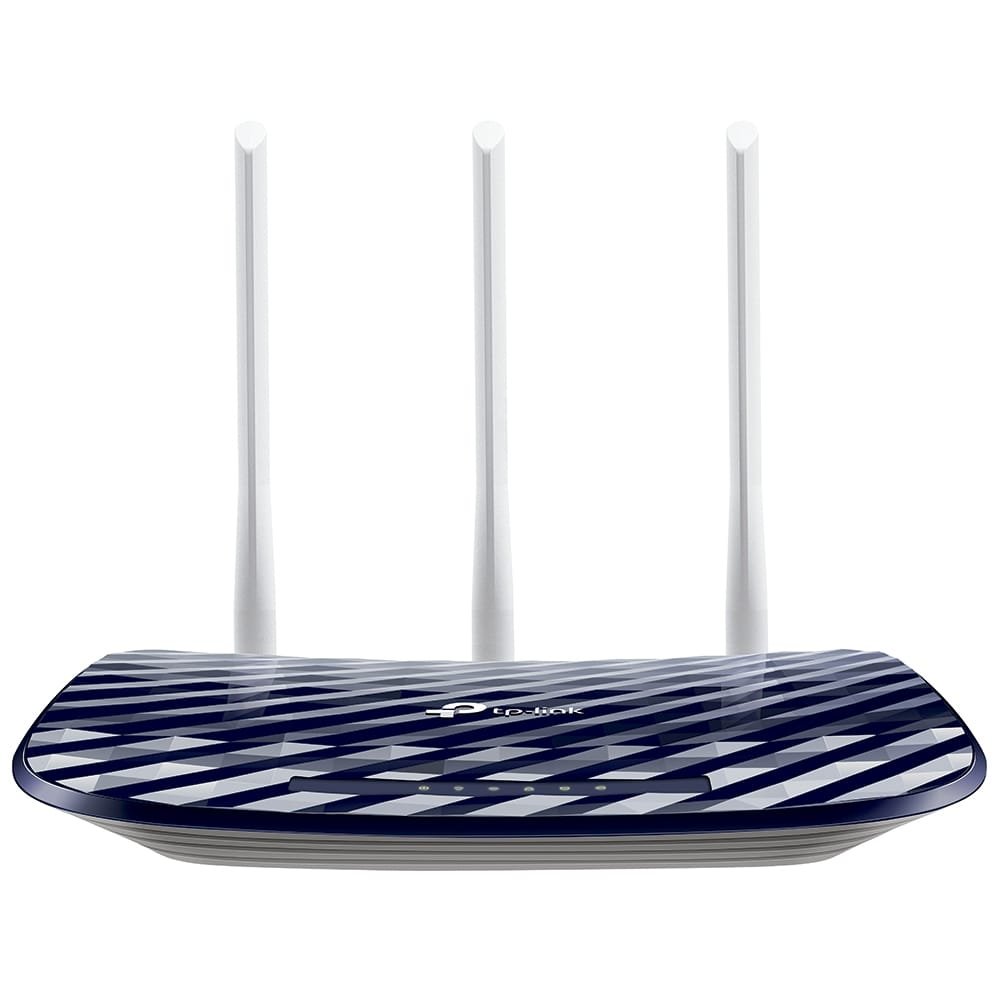

Roteador Wireless Tp-Link Archer C20W AC750, 733Mbps, Dual Band, 4 portas, 3 Antenas
ESPECIFICAÇÕES TÉCNICAS
Características:
- Marca: TP-Link
- Modelo: Archer C20 V5
Especificações:
Padrões
Wi-Fi 5:
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
Velocidade de WiFi:
AC750
5 GHz: 433 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
Alcance do sinal WiFi:
2 Bedroom Houses
3× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Capacidade WiFi:
Medium
Dual-Band
Allocate devices to different bands for optimal performance
Modos de Operação:
Router Mode
Access Point Mode
Range Extender Mode
Processador:
Single-Core CPU
Portas Ethernet:
1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
Botões:
WPS/Wi-Fi Button
Power On/Off Button
Reset Button
Alimentação:
9 V ? 0.6 A
Criptografia WiFi:
WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Segurança de Rede:
SPI Firewall
Access Control
IP MAC Binding
Application Layer Gateway
Rede para Visitantes:
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
Protocolos:
IPv4
IPv6
Controle dos Pais:
URL Filtering
Time Controls
Tipos de WAN:
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Qualidade de Serviço (QoS):
QoS by Device
NAT Forwarding:
Virtual Server
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV:
IGMP Proxy
IGMP Snooping
DHCP:
Address Reservation
DHCP Client List
Server
DDNS:
NO-IP
Comex
DynDNS
Gerenciamento:
Tether App
Webpage
Check Web Emulator>
Dimensões (W×D×H):
9.1 × 5.7 × 1.4 in
(230 × 144 × 35 mm)
Conteúdo do Pacote:
Wi-Fi Router Archer C20
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Requisitos de Sistema:
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certificações:
FCC, CE, RoHS
Ambiente:
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Potência de Transmissão WiFi:
CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
Sensibilidade de Recepção WiFi:
5GHz:
11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm;
11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9:
-62dBm
2.4GHz:
11g 54M: -76dBm11n; HT20 MCS7: -73dBm;
11n HT40 MCS7: -71dBm
