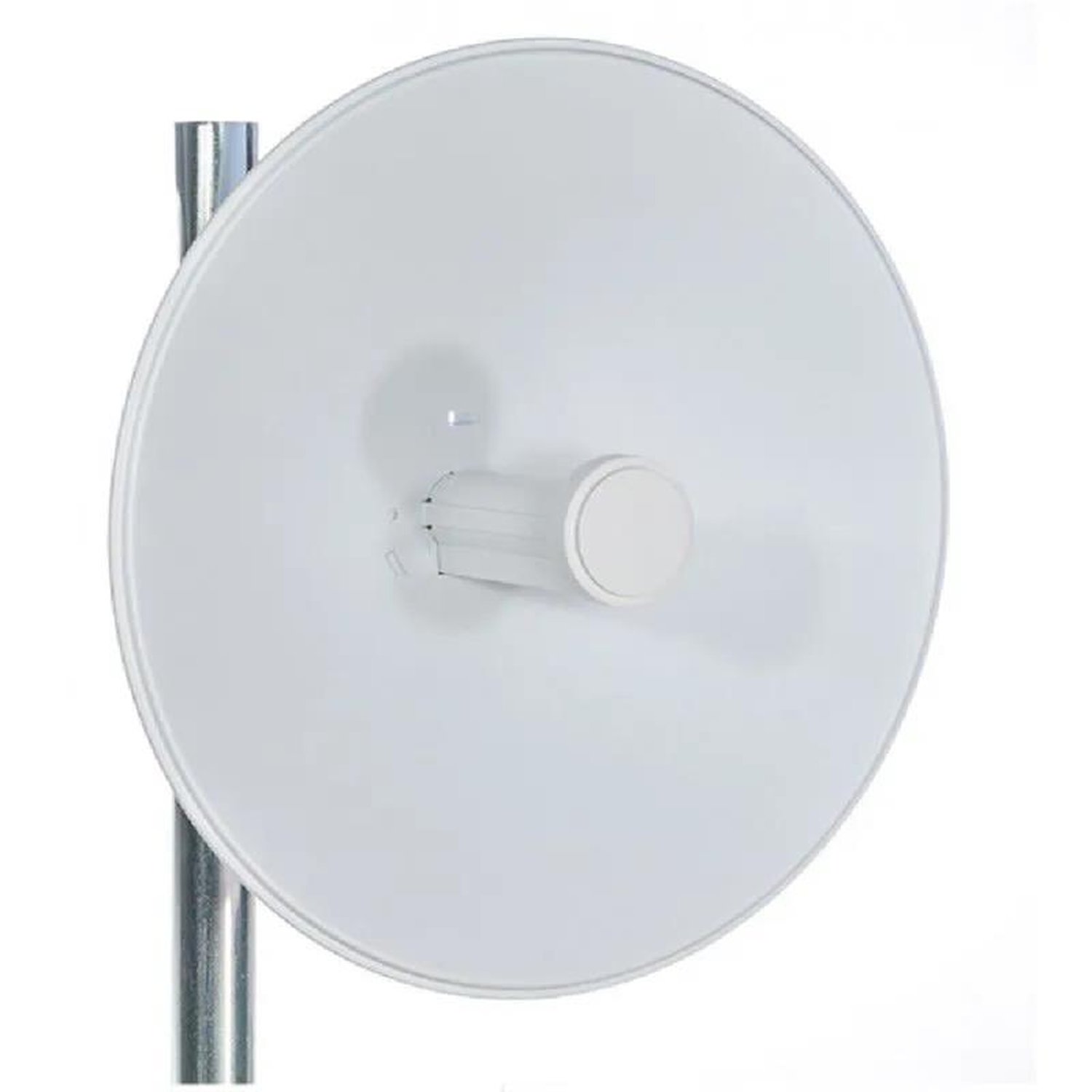

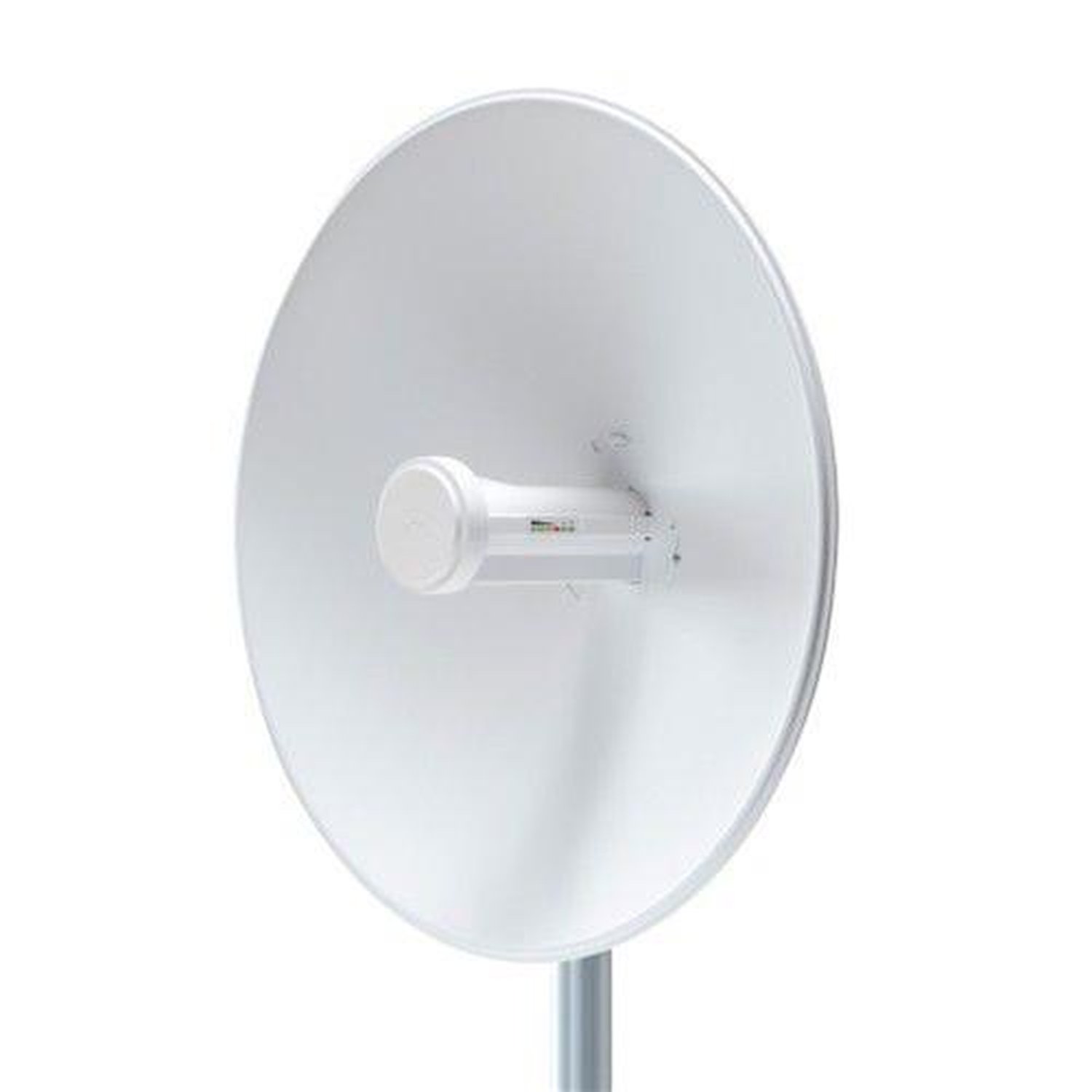

Ubiquiti Powerbeam M5-300 22dbi Oem Pbe-M5-300
Informações Processor Specs Atheros MIPS 74KC, 560 MHz Memory 64 MB DDR2, 8 MB Flash Networking Interface (1) 10/100 Ethernet Port Wireless Approvals FCC, IC, CE RoHS Compliance Yes Physical/Electrical/Environmental Dimensions 325 x 325 x 256 mm Weight 1.203 kg Power Supply 24V, 0.5A PoE Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return) Max. Power Consumption 6 W Gain 22 dBi Wind Loading 200.2 N @ 200 km/h (45 lbf @ 125 mph) Wind Survivability 200 km/h (125 mph) LEDs (1) Power, (1) LAN, (4) WLAN Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels Channel Sizes 5/8/10/20/30/40 MHz Polarization Dual Linear Enclosure Outdoor UV Stabilized Plastic Mounting Pole-Mount Kit Included ESD/EMP Protection Air: ±24 kV, Contact:± 24 kV Operating Temperature -40 to 70°C Operating Humidity 5 to 95% Non-Condensing Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 Vibration Test IEC 68-2-6 Temperature Shock Test IEC 68-2-14 UV Test IEC 68-2-5 at 40°C (104° F), Equivalent: ETS 300 019-1-4 Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 Operating Frequency Summary (MHz)Worldwide: 5170 - 5875 USA: 5725 - 5850 *TODAS AS INFORMAÇÕES DIVULGADAS SÃO DE RESPONSABILIDADE DO FABRICANTE
*IMAGENS MERAMENTE ILUSTRATIVAS
